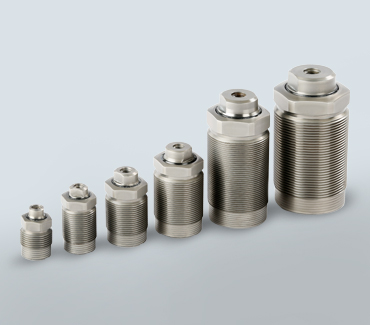

The JPC Series Pusher Cylinders feature a robust externally threaded body for easy mounting, precision-machined internal components, and reliable sealing to ensure smooth operation and consistent force output under continuous industrial use. Available in multiple body sizes with small, medium, and large stroke options, JPC pusher cylinders offer flexibility for various load requirements and installation constraints. Their compact design allows easy integration into space-restricted fixtures while maintaining high reliability and long service life.
JPC pusher cylinders are ideal for applications requiring precise linear motion, controlled pushing force, and dependable hydraulic performance.

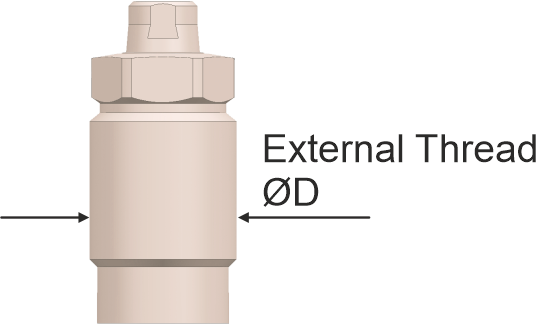

Model No. Indication
| MODEL NO. | JPC-16 | JPC-22 | JPC-24 | JPC-30 | JPC-36 | JPC-45 | JPC-55 | JPC-65 | JPC-80 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | M | L | S | M | L | S | M | L | S | M | L | S | M | L | S | M | L | S | M | L | S | M | L | S | M | L | |
| Stroke (mm) | 6 | 10 | 16 | 6 | 10 | 16 | 8 | 12 | 20 | 8 | 12 | 20 | 10 | 16 | 25 | 10 | 16 | 25 | 12 | 20 | 32 | 16 | 25 | 40 | 16 | 25 | 40 |
| Cylinder Force Formula (kN) | F=(0.050×P)-0.024 | F=(0.113×P)-0.049 | F=(0.154×P)-0.068 | F=(0.254×P)-0.099 | F=(0.319×P)-0.150 | F=(0.707×P)-0.319 | F=(0.999×P)-0.452 | F=(1.59×P)-0.657 | F=(2.38×P)-1.04 | ||||||||||||||||||
| Cylinder Area (cm²) | 0.5 | 1.1 | 1.5 | 2.5 | 3.9 | 7.1 | 9.9 | 15.9 | 23.8 | ||||||||||||||||||
| Cylinder Capacity (cm³) | 0.3 | 0.5 | 0.8 | 0.7 | 1.1 | 1.8 | 1.2 | 1.8 | 3.1 | 2 | 3.1 | 5.1 | 3.9 | 6.3 | 8.1 | 7.1 | 11.3 | 17.7 | 11.9 | 19.8 | 31.7 | 25.4 | 39.8 | 63.6 | 38 | 59.4 | 95 |
| Release Spring Force (N) | 12.5~23.5 | 25.7~41.2 | 32.6~59.7 | 50.1~99.1 | 79.4~150 | 157~319 | 236~452 | 353~657 | 564~1040 | ||||||||||||||||||
| Max. Operating Pressure (MPa) | 25 | ||||||||||||||||||||||||||
| Min. Operating Pressure (MPa) | 0.8 | ||||||||||||||||||||||||||
| Withstanding Pressure (MPa) | 37.5 | ||||||||||||||||||||||||||
| Operating Temperature (°C) | 0 ~ 70 | ||||||||||||||||||||||||||
| Weight (kg) | 0.03 | 0.04 | 0.05 | 0.06 | 0.08 | 0.1 | 0.08 | 0.1 | 0.15 | 0.15 | 0.2 | 0.3 | 0.3 | 0.4 | 0.5 | 0.5 | 0.6 | 0.8 | 0.8 | 1 | 1.3 | 1.4 | 1.7 | 2.2 | 2.2 | 2.7 | 3.6 |
