Compact and efficient hydraulic link cylinders designed for smooth motion and reliable force transmission. Ideal for applications requiring controlled linear movement within limited installation space.

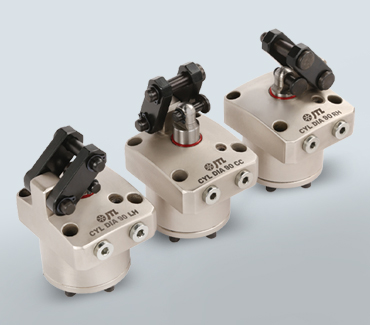

JLC Series Link Cylinders are designed for reliable performance in continuous industrial operation. The robust body construction, precision-machined internal components, and optimized lever mechanism ensure consistent clamping force at low hydraulic pressure.
JLC link cylinders are ideal for applications requiring secure workpiece clamping, precise positioning, and safe machine operation in demanding industrial environments.

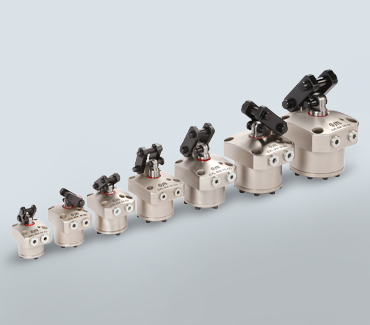

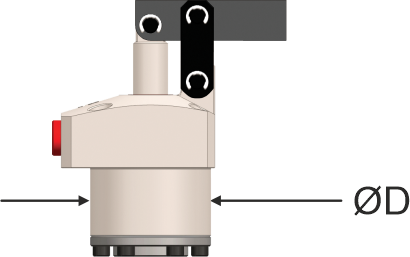

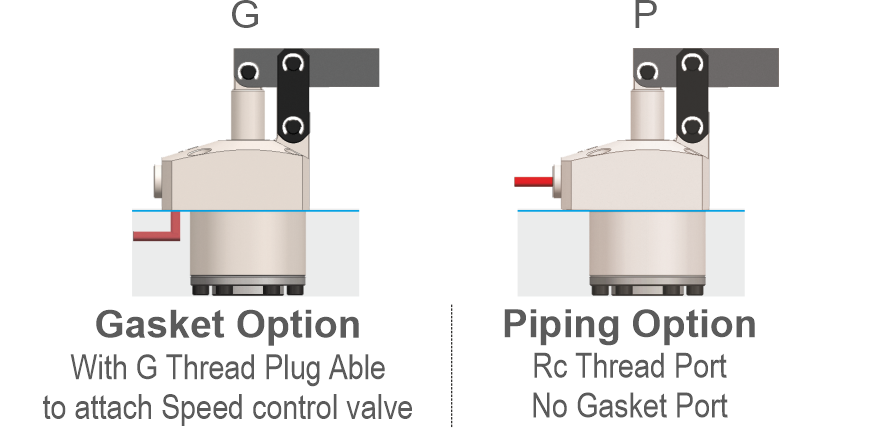

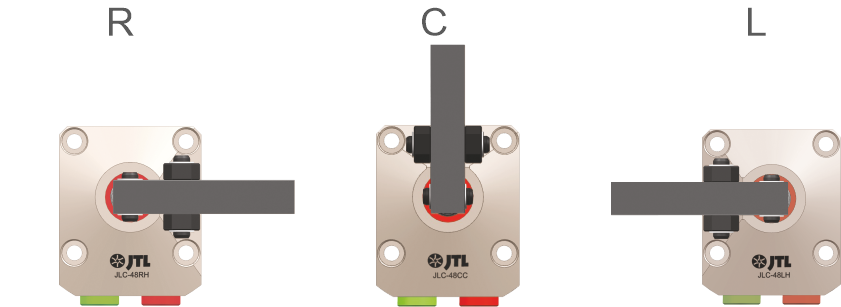

Model No. Indication
| Model No. | Unit | Ø40 | Ø48 | Ø55 | Ø65 | Ø75 | Ø90 | Ø105 |
|---|---|---|---|---|---|---|---|---|
| Cylinder Area For Locking | cm² | 5.31 | 7.07 | 9.62 | 15.9 | 23.8 | 36.3 | 50.3 |
| Clamping Force (F) | kN | 7.64 × P | 11.76 × P | 18.18 × P | 35.06 × P | 64.14 × P | 117.66 × P | 199.05 × P |
| L − 16 | L − 18.5 | L − 21 | L − 24.5 | L − 30 | L − 36 | L − 44 | ||
| Cylinder Capacity (Lock) | cm³ | 10.9 | 16.6 | 25 | 46.9 | 83.2 | 148.9 | 246.3 |
| Cylinder Capacity (Release) | cm³ | 8.6 | 13 | 19.8 | 37.7 | 69.8 | 123.7 | 197.8 |
| Cylinder Inner Diameter | mm | 26 | 30 | 35 | 45 | 55 | 68 | 80 |
| Rod Diameter | mm | 12 | 14 | 16 | 20 | 22 | 28 | 35.5 |
| Full Stroke | mm | 20.5 | 23.5 | 26 | 29.5 | 35 | 41 | 49 |
| Lock Stroke | mm | 17.5 | 20.5 | 23 | 26.5 | 32 | 38 | 46 |
| Extra Stroke | mm | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Mass | kg | 0.7 | 1.1 | 1.4 | 2.2 | 3.2 | 5.3 | 8.6 |
| Mix. Operating Pressure | MPa | 7 | ||||||
| Min. Operating Pressure | MPa | 0.5 | ||||||
| Withstanding Pressure | MPa | 10.5 | ||||||
| Operating Temp °C | 0 ~ 70 | |||||||
