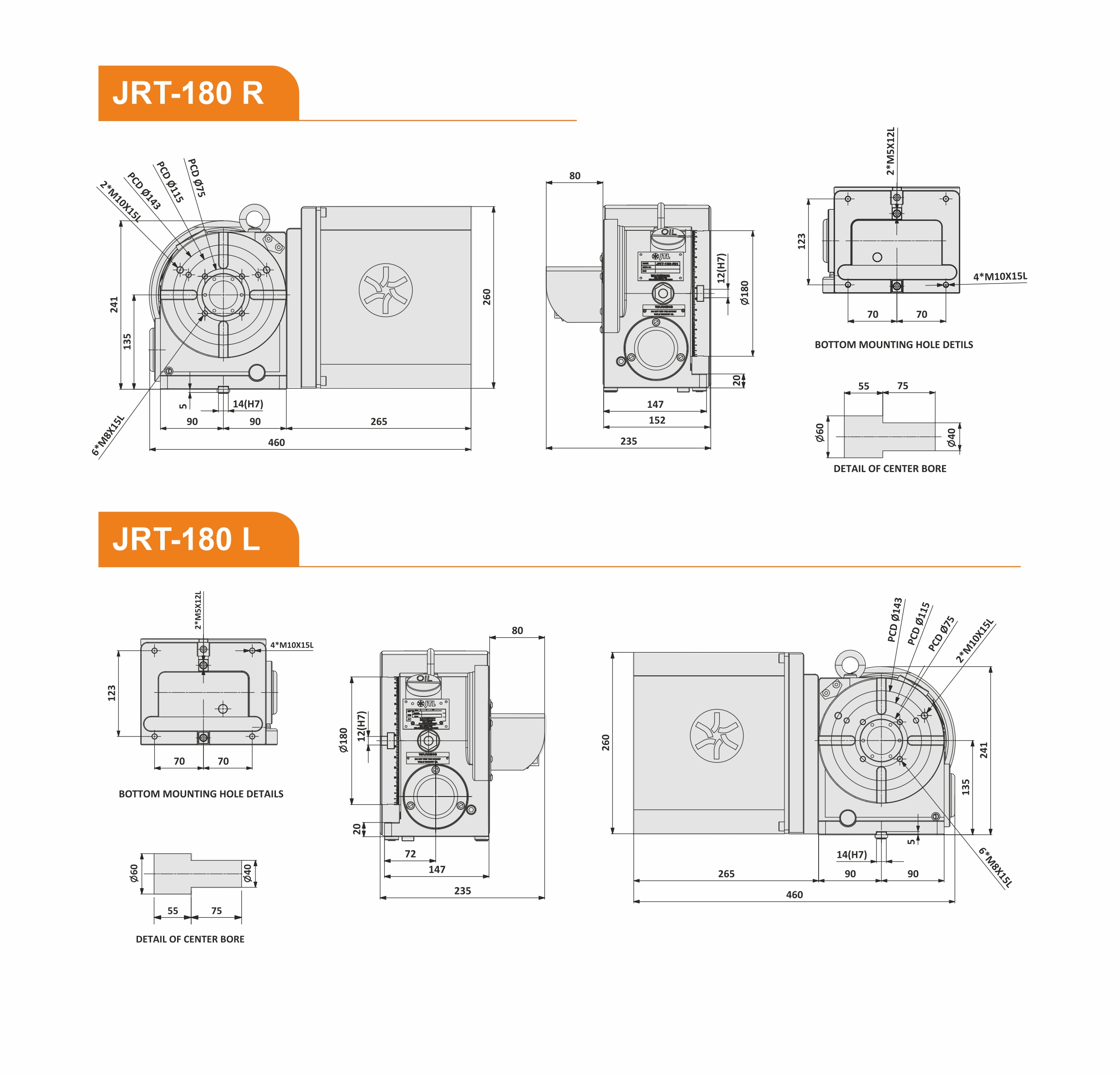

JRT-180 Rotary Table

The JRT-180 Rotary Table is a heavy-duty, precision indexing solution designed for medium to large CNC machining centers and SPM applications. With its robust construction, high load capacity, and superior clamping torque, it delivers stable performance for demanding machining operations while ensuring long service life.

  • Features

  • Robust and rigid design for heavy-duty machining applications
  • Pneumatic clamping
  • High clamping torque ensures stable and vibration-free cutting
  • Excellent indexing accuracy and repeatability for precision operations
  • Hardened & ground worm gear set for durability and wear resistance
  • Suitable for CNC machining centers and manual setups
  • High load-carrying capacity to handle larger components
Model JRT-180
Turn Table Diameter (mm)180
Spindle Hole Diameter (mm)Ø60
Center Height (mm)135
Width of T Slot (mm) (H7)14
Clamping Torque (Nm)300
Table Inertia at Motor Shaft0.08
Fanuc Servo MotorBisc 4/4000-B (4000)
Mitsubishi MotorHG105S-D48 (4000)
Min Increment (Deg)0.001
Rotation Speed (per min)33.3
Total Reduction Ratio1/90
Indexing Accuracy (sec)±20"
Indexing Repeatability (arc sec)4"
Net Weight (Kg)50
Max Work Load Horizontal (Kg)200
Max Work Load Vertical (Kg)100
Max Thrust Load Horizontal (N)13000
Max Thrust Load Vertical (N)4500
Driving Torque (Nm)72
