The JHE-40 Hydraulic Equalizer is a heavy-duty, long-stroke clamping unit designed to deliver uniform and stable clamping force in large hydraulic fixture systems. It ensures balanced pressure distribution while accommodating greater clamping heights, making it suitable for demanding machining applications.
With a rigid body, precision-machined internal components, and stable pressure–force characteristics, the JHE-40 provides high reliability, accurate positioning, and long service life under continuous industrial operation. Its robust construction makes it ideal for large CNC fixtures, rotary tables, and automation systems.
| Specification | Value | Specification | Value |
|---|---|---|---|
| Dimension (L × W × H) | 98 × 98 × 75 mm | Min Actuating Pressure | 1 Bar |

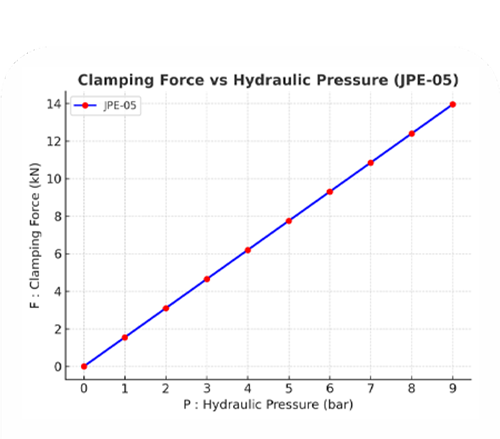

| Weight | 4 kg | Max Clamping Force | 14 kN at 9 Bar |
| Clamping Range | 0–90 mm | Air Consumption (6 bar) | 701 cm³ per double stroke |
| Stroke Per Jaw | 2.5 mm | Jaw Connection | Tongue and Groove |
| Max. Actuating Pressure | 9 Bar | Air Connection | On the side & underside |

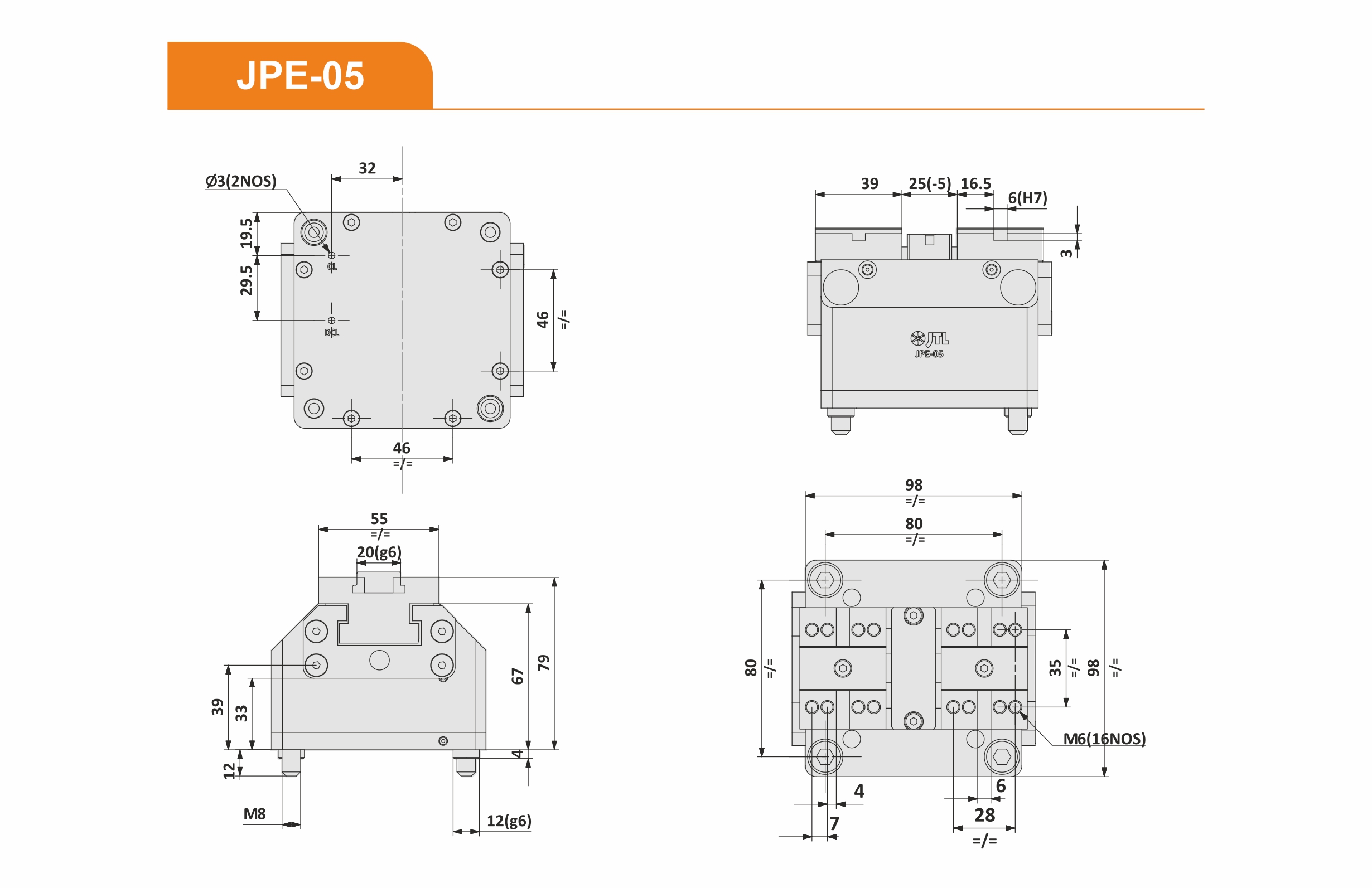

NOTE * ALL DIMENSION ARE SHOWN IN DECLAMP CONDITION
