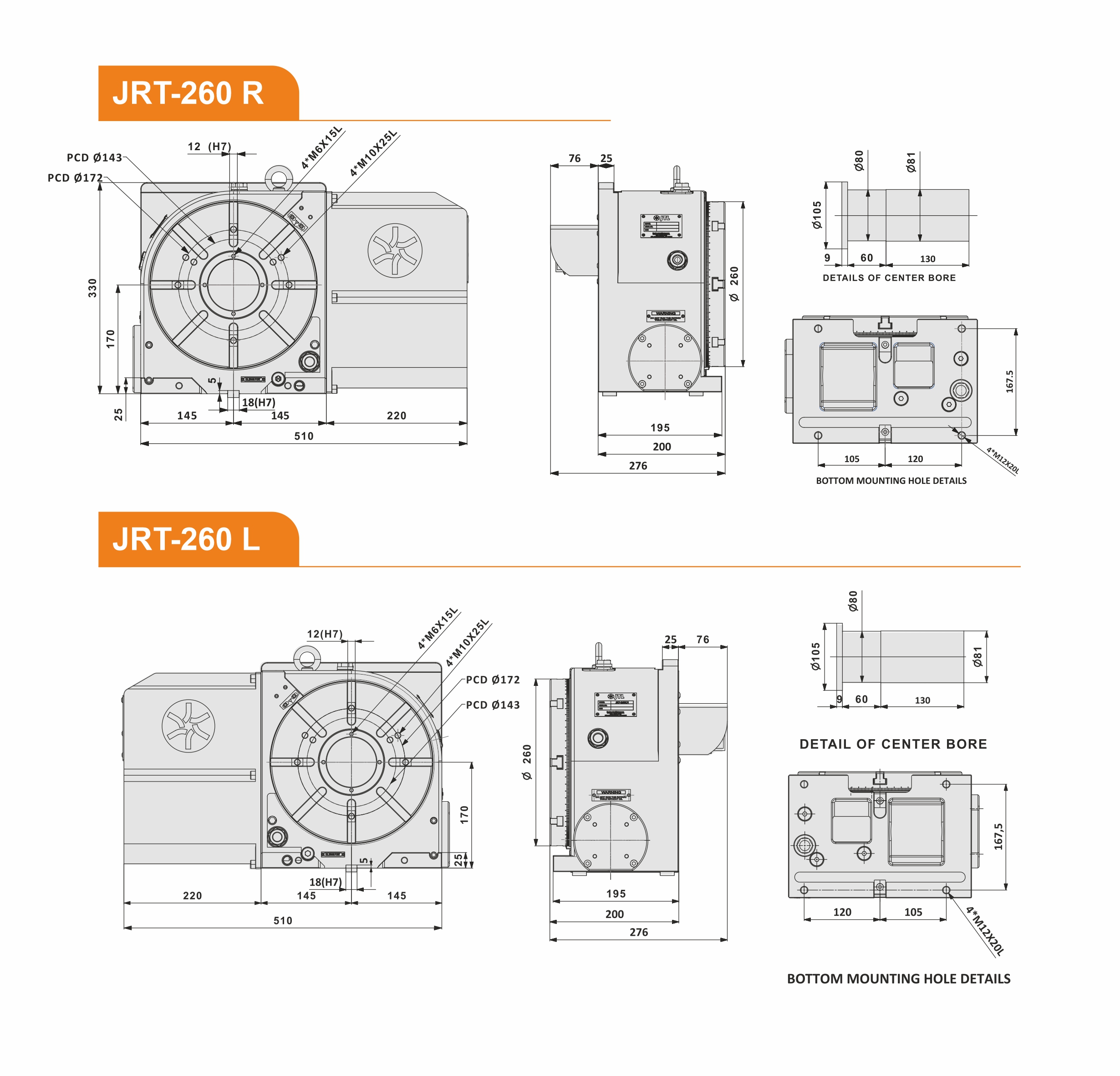

The JRT-260 Rotary Table is a high-capacity, precision indexing solution engineered for extra-large components and demanding machining applications. With its heavy-duty structure, powerful hydraulic clamping, and reliable indexing, it ensures stable and consistent performance on CNC machining centers and SPM machines
| Model | JRT-260 |
|---|---|
| Turn Table Diameter (mm) | 260 |
| Spindle Hole Diameter (mm) | Ø80 |
| Center Height (mm) | 170 |
| Width of T Slot (mm) (H7) | 18 |
| Clamping Torque (Nm) | 1560 |
| Table Inertia at Motor Shaft | 0.33 |
| Fanuc Servo Motor | Bisc 8/3000-B (3000) |
| Mitsubishi Motor | HG123T-D40 (2000) |
| Min Increment (Deg) | 0.001 |
| Rotation Speed (per min) | 25 |
| Total Reduction Ratio | 1/120 |
| Indexing Accuracy (sec) | ±20" |
| Indexing Repeatability (arc sec) | 4" |
| Net Weight (Kg) | 96 |
| Max Work Load Horizontal (Kg) | 350 |
| Max Work Load Vertical (Kg) | 175 |
| Max Thrust Load Horizontal (N) | 21000 |
| Max Thrust Load Vertical (N) | 7500 |
| Driving Torque (Nm) | 192 |
