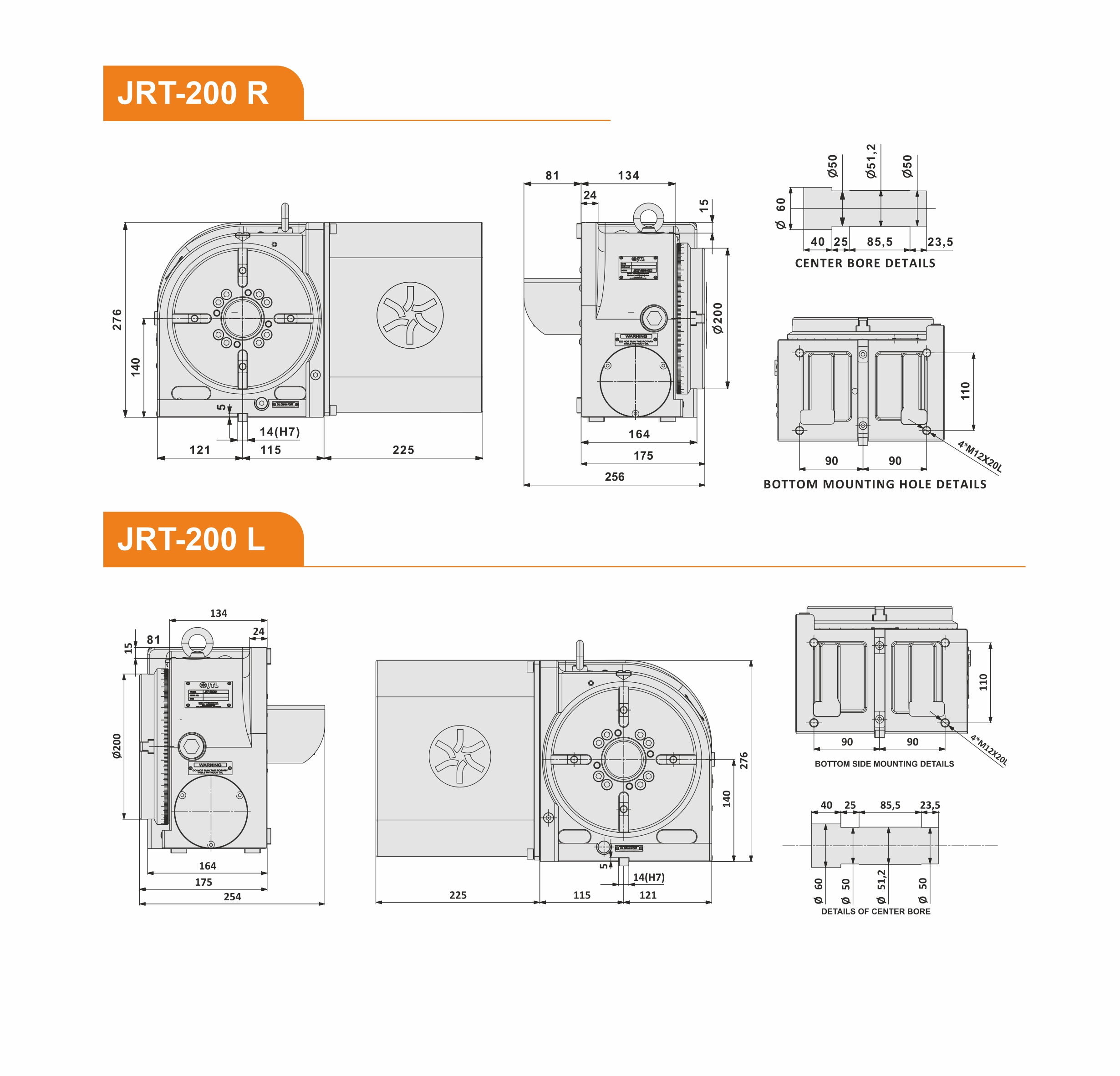

JRT-200 Rotary Table

The JRT-200 Rotary Table is engineered for large-scale, precision machining applications where high accuracy and strength are critical. Designed for CNC machining centers and SPM machines, it combines robust construction, powerful clamping torque, and reliable indexing to handle heavy components with ease.

  • Features

  • Strong and rigid design suitable for large and heavy components
  • Available with pneumatic or hydraulic clamping (recommended)
  • High clamping torque provides stable and vibration-free cutting
  • Excellent indexing accuracy and repeatability for precision machining
  • Hardened & ground worm gear set ensures durability and long service life
  • Suitable for CNC machining centers and manual operations
  • Very high load-carrying capacity in a durable structure
Model JRT-200
Turn Table Diameter (mm)200
Spindle Hole Diameter (mm)Ø60
Center Height (mm)140
Width of T Slot (mm) (H7)14
Clamping Torque (Nm)900
Table Inertia at Motor Shaft0.09
Fanuc Servo MotorBisc 8/3000-B (3000)
Mitsubishi MotorHG123T-D40 (2000)
Min Increment (Deg)0.001
Rotation Speed (per min)33.3
Total Reduction Ratio1/90
Indexing Accuracy (sec)±15"
Indexing Repeatability (arc sec)4"
Net Weight (Kg)65
Max Work Load Horizontal (Kg)300
Max Work Load Vertical (Kg)150
Max Thrust Load Horizontal (N)14000
Max Thrust Load Vertical (N)5000
Driving Torque (Nm)250
