Equalizer JHE 12

The JHE-32 Hydraulic Equalizer is a heavy-duty clamping unit designed for high-force, uniform pressure distribution in multi-point hydraulic clamping systems. It ensures balanced clamping by automatically compensating for workpiece height variations, resulting in improved machining accuracy and stability.
Built with a rigid body and precision-machined internal components, the JHE-32 delivers high clamping force, excellent repeatability, and reliable performance under continuous industrial operation. Its robust design makes it suitable for large CNC fixtures, rotary tables, and demanding machining applications.

  • Features

  • Uniform multi-point hydraulic clamping
  • High clamping force for heavy-duty applications
  • High repeatability and stable positioning
  • Robust construction for continuous operation
  • Suitable for CNC and automation fixtures

JHE-32

Specification Value Specification Value
Slide Stroke (One Side) 16 mm Locating Repeatability (X-axis direction) 105 bar
Max. Clamping Height (at 70 bar) 65 mm Operating Temperature 0~70°C
Max. Operating Pressure 70 bar Usable Fluid Hydraulic Oil ISO-VG32
Min. Operating Pressure 15 bar Weight 13 kg

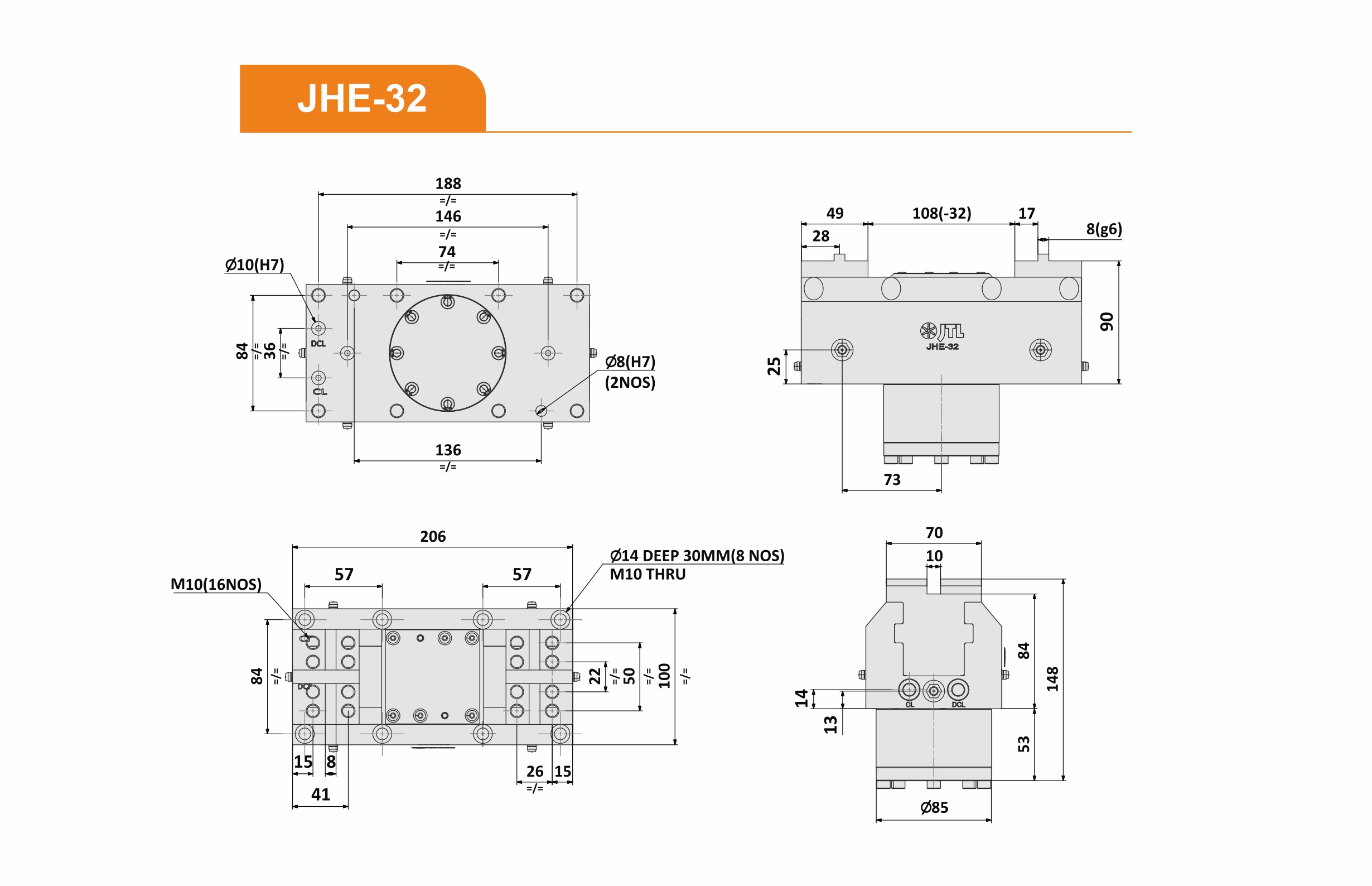

NOTE * ALL DIMENSION ARE SHOWN IN DECLAMP CONDITION
