Equalizer JHE 12

The JHE-12 Hydraulic Equalizer is a high-force clamping unit designed to provide uniform pressure distribution across multiple jaws using hydraulic actuation. It ensures consistent and balanced clamping, even with workpiece height variations, improving machining accuracy and process reliability. With a rigid body, precision-machined internal components, and a direct pressure–force relationship, the JHE-12 delivers stable clamping force, high repeatability, and long service life under continuous industrial operation. Its compact design allows easy integration into CNC fixtures, rotary tables, and special-purpose machines.

  • Features

  • Uniform multi-point clamping
  • Hydraulic operation with high clamping force
  • High accuracy and repeatability
  • Robust and compact construction
  • Reliable performance for continuous duty

JHE-12

Specification Value Specification Value
Dimension (L x W x H) 116 x 84 x 94 mm Min Actuating Pressure 5 Bar

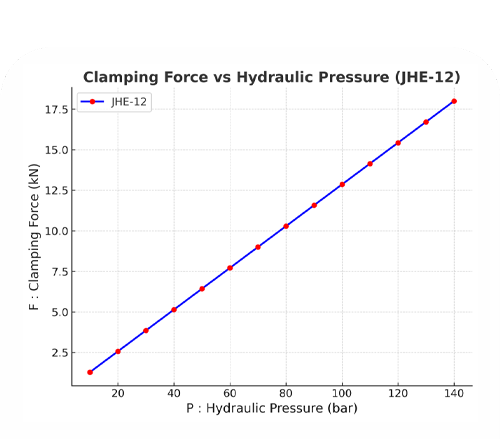

Weight 6 kg Max Clamping Force 17.5 kN at 140 Bar
Clamping Range 0-100 mm Stroke Volume 13 cm³ per double stroke
Strokes Per Jaw 6 mm Jaw Connection Tongue and groove
Max Actuating Pressure 140 Bar Hydraulic Connections On the underside

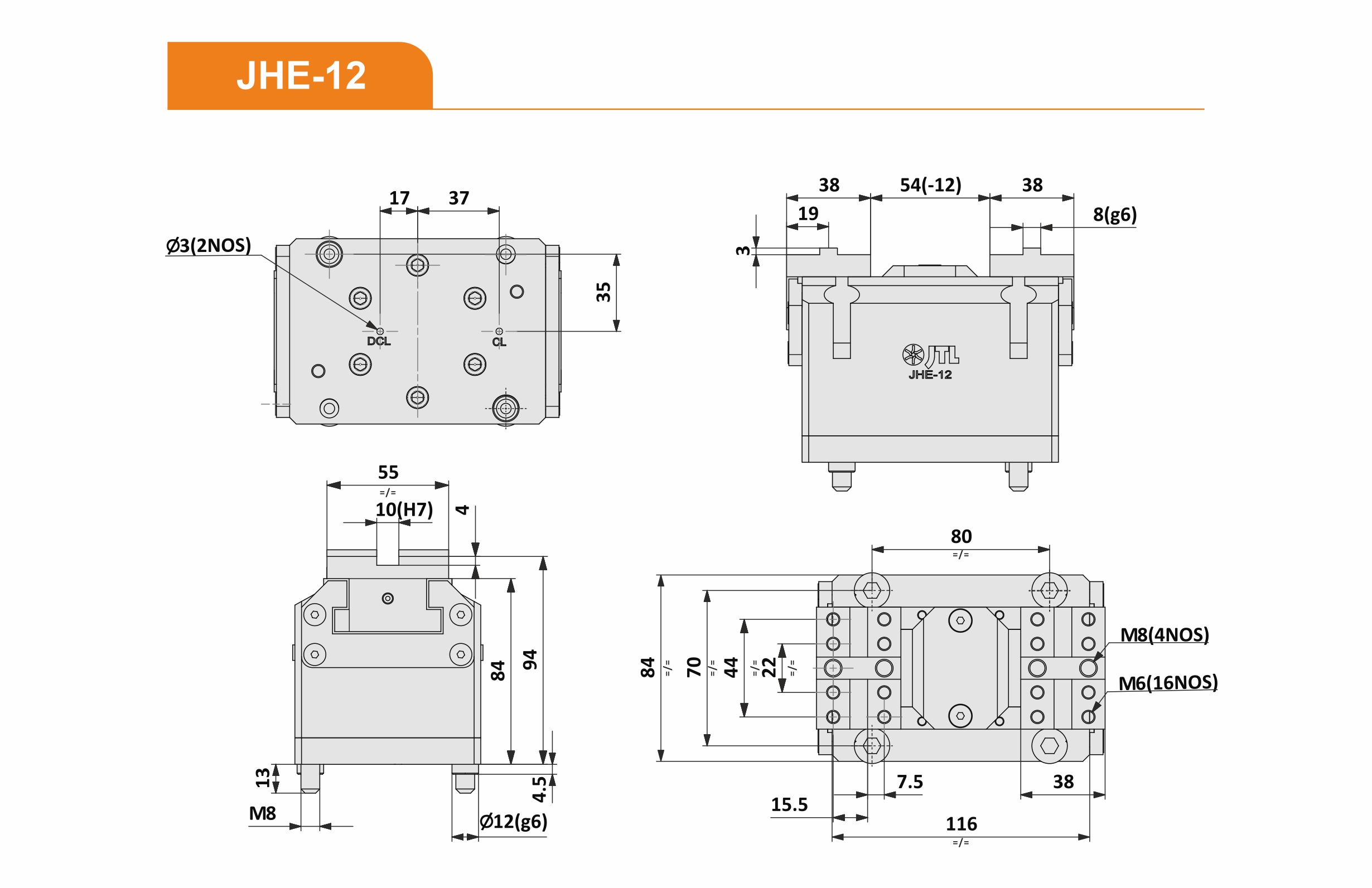

NOTE * ALL DIMENSION ARE SHOWN IN DECLAMP CONDITION
