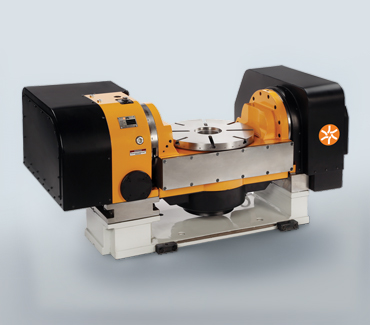

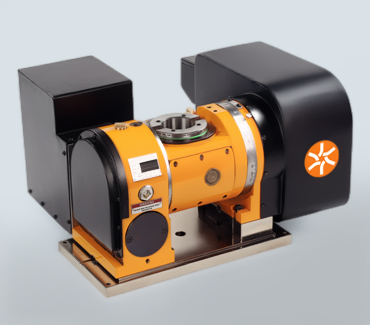

CNC Rotary Table 5th Axis JRT-5AX Series

High Precision - High Torque - Reliable Performance

The JRT-5AX Series unlocks the power of true 5-axis machining for complex and high-precision applications. Designed to overcome the limitations of traditional setups, these rotary tables enable multi-sided machining, intricate geometries, and faster cycle times-all in a single setup.


With exceptional accuracy, rigidity, and efficiency, the JRT-5AX Series empowers manufacturers to push boundaries, reduce costs, and achieve exceptional results across industries including aerospace, medical, automotive, electronics, and die-Mold engineering.


CNC ROTARY TABLE 5TH AXIS
JRT-5AX 1 – 105 2 – 2MT 3

1. Product Standard

JRT-5AX → CNC Rotary Table 5th Axis

2. Turn Table Diameter (ØD)

105 → Ø105 mm
350 → Ø350 mm

3. No. of Spindle

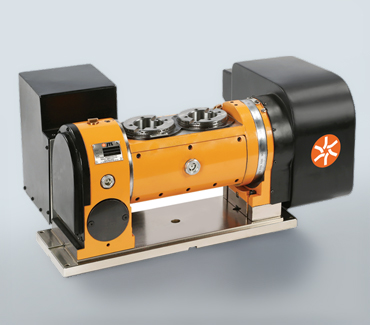

2MT → Twin Spindle
(no letter) → Single Spindle

Key Highlights of JRT Series

  • Precision Redefined – Sub-micron accuracy for machining highly complex parts.
  • Multi-Sided Machining – Machine multiple faces in one setup, saving time and operations.
  • Optimized Productivity – Streamlined workflow ensures shorter cycle times and higher output
  • Cost Advantage – Fewer tool changes, minimal material waste, and leaner processes cut production costs.
  • Rigid & Durable Design – High stability under heavy cutting loads with superior clamping torque.
  • Configurable Options – Available in single spindle, twin spindle, and large-diameter models.
  • Industry Versatility – Perfect for aerospace, medical devices, automotive, electronics, and precision engineering.

Specification / Model Number JRT-5AX-105 JRT-5AX-105-2MT JRT-5AX-350
Turn Table DiameterØ mm105105350
Spindle Hole Diameter (H7)Ø mm606080
Number of Spindles (Pitch)12 Spindles (120)1
Center Heightmm135175300
Table Height in Horizontal Positionmm190250300
Width of T-Slot (H7)mm161612
AxisRotaryTilting (0~105)Rotary / Tilting (0~105)
Clamping SystemPneumaticPneumaticHydraulic
Clamping TorqueN·m200605 / 1441565
Table Inertia at Motor Shaftkg·m²×10⁻³0.090.12 / 0.130.8 / 1.35
Servo Motorr/minα iF1.2000α iF2.3000α iF12.2000
Min Incrementdeg0.0010.0010.001
Rotation Speedr/min44.422.2 / 33.322.2
Total Reduction Ratio1:451:90 / 1:1801:90
Indexing Accuracysec±30±30 / 6020 / 60
Net Weightkg86.8106485
MAX Work Load on the Table
0 to 30kg4015200
30 to 90kg2010200
Tilting Angle = 0N5295393519580
Tilting Angle = 0L=45mm F=3840NL=60mm F=780NL=175mm F=4890N
Tilting Angle = 90L1=0mm F1=2959NL1=0mm F1=650NL1=0mm F1=17150N
Max Work Inertiakg·m²0.030.0143.2
Driving TorqueN·m1836288

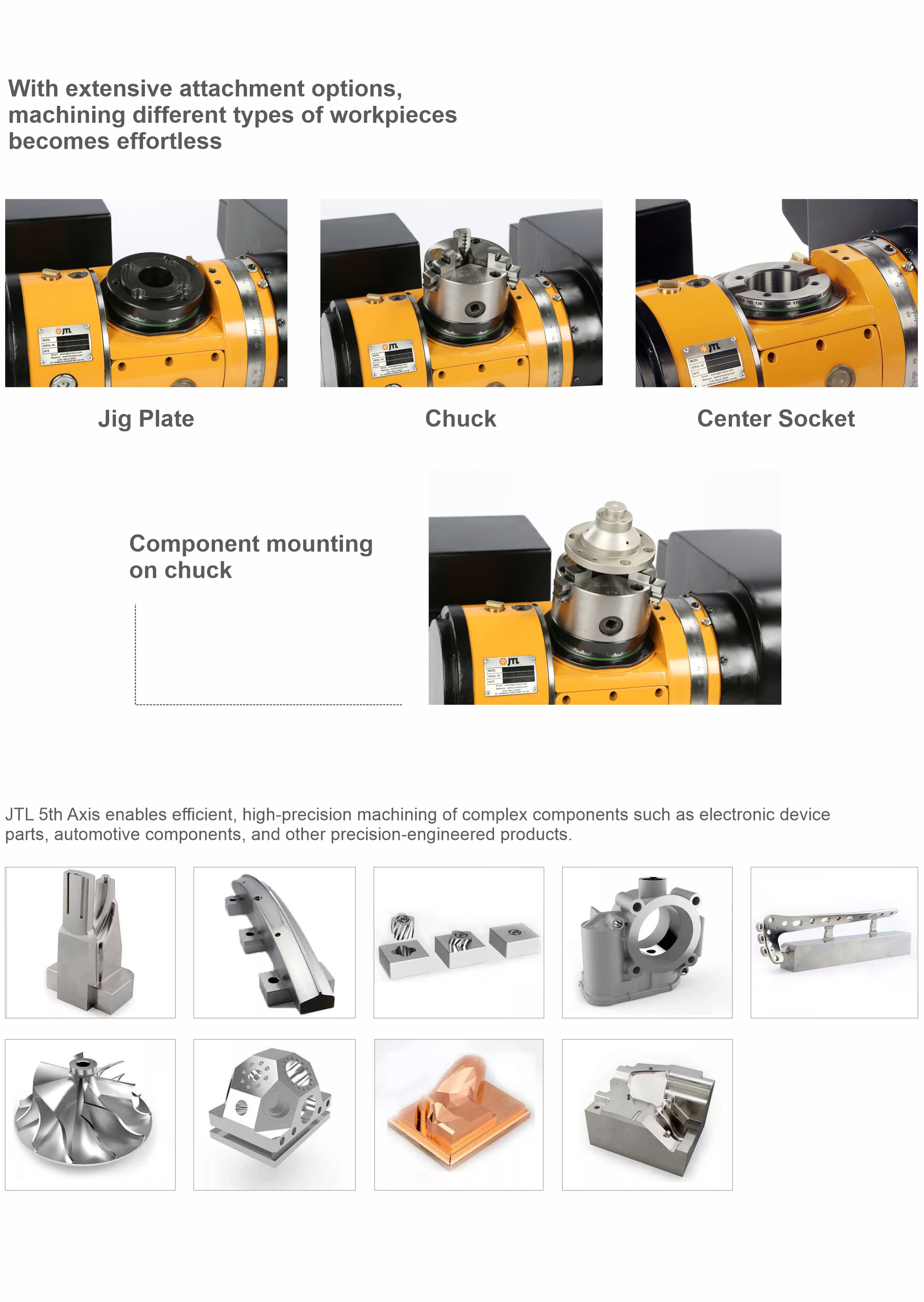

    5th AXIS ROTARY TABLE APPLICATION
