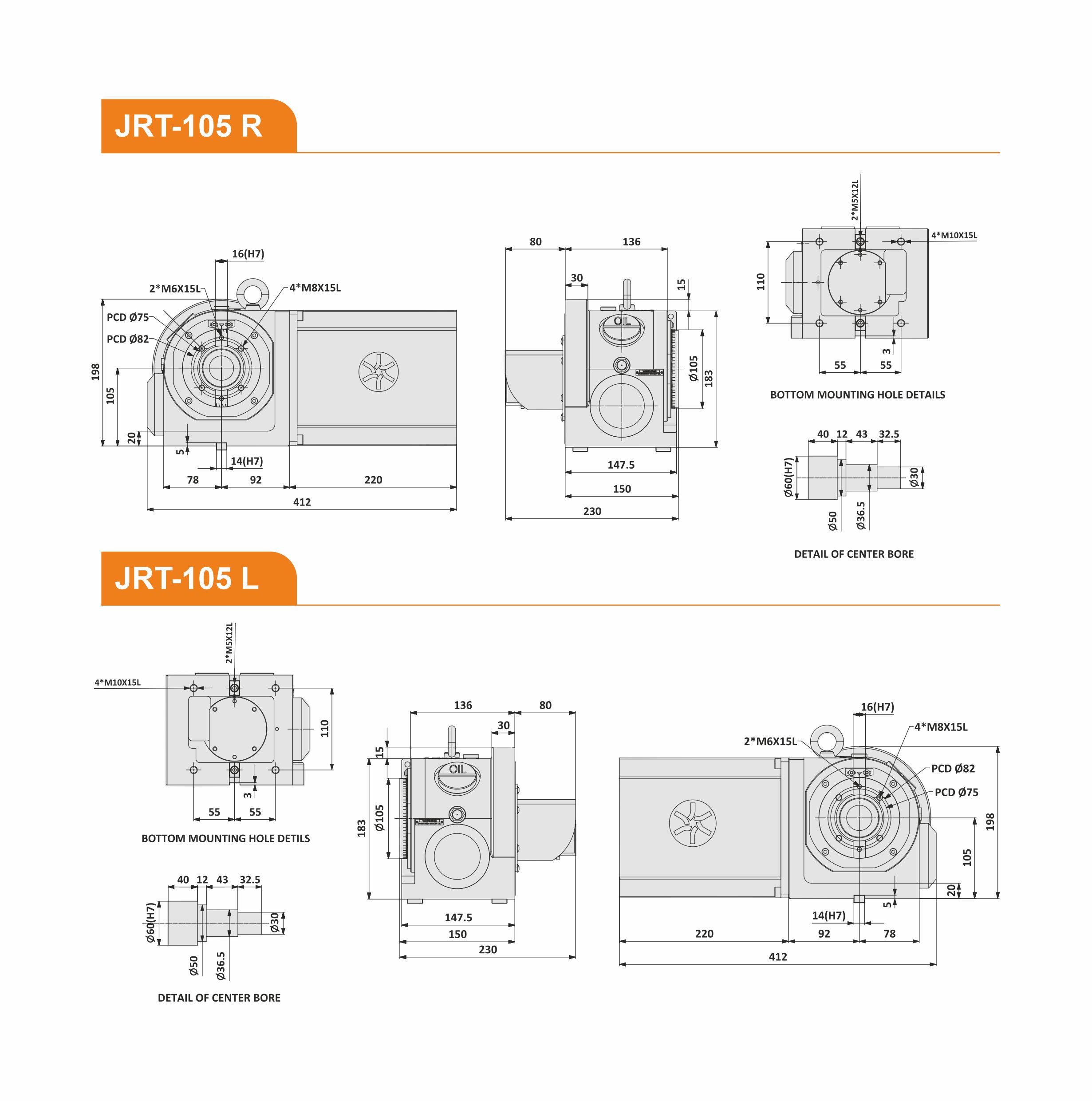

JRT-105 Rotary Table

The JRT-105 Rotary Table is a compact, high-precision indexing solution designed for CNC machining centers and SPM applications. Its rigid construction, high clamping torque, and accurate indexing make it ideal for demanding machining operations, providing consistent performance and reliability.

  • Features

  • Compact and rigid design suitable for high-precision machining
  • Pneumatic clamping
  • High clamping torque ensures stable and vibration-free cutting
  • Excellent indexing accuracy and repeatability
  • Hardened & ground worm gear set for durability and long service life
  • Compatible with CNC and manual operations
  • High load-carrying capacity in a compact size
Model JRT-105
Turn Table Diameter (mm)105
Spindle Hole Diameter (mm)Ø60
Center Height (mm)105
Width of T Slot (mm) (H7)14
Clamping Torque (Nm)205
Table Inertia at Motor Shaft0.06
Fanuc Servo MotorBisc 4/4000-B (4000)
Mitsubishi MotorHG105S-D48 (4000)
Min Increment (Deg)0.001
Rotation Speed (per min)33.3
Total Reduction Ratio1/90
Indexing Accuracy (sec)±30"
Indexing Repeatability (arc sec)4"
Net Weight (Kg)31
Max Work Load Horizontal (Kg)60
Max Work Load Vertical (Kg)30
Max Thrust Load Horizontal (N)7500
Max Thrust Load Vertical (N)3800
Driving Torque (Nm)36
