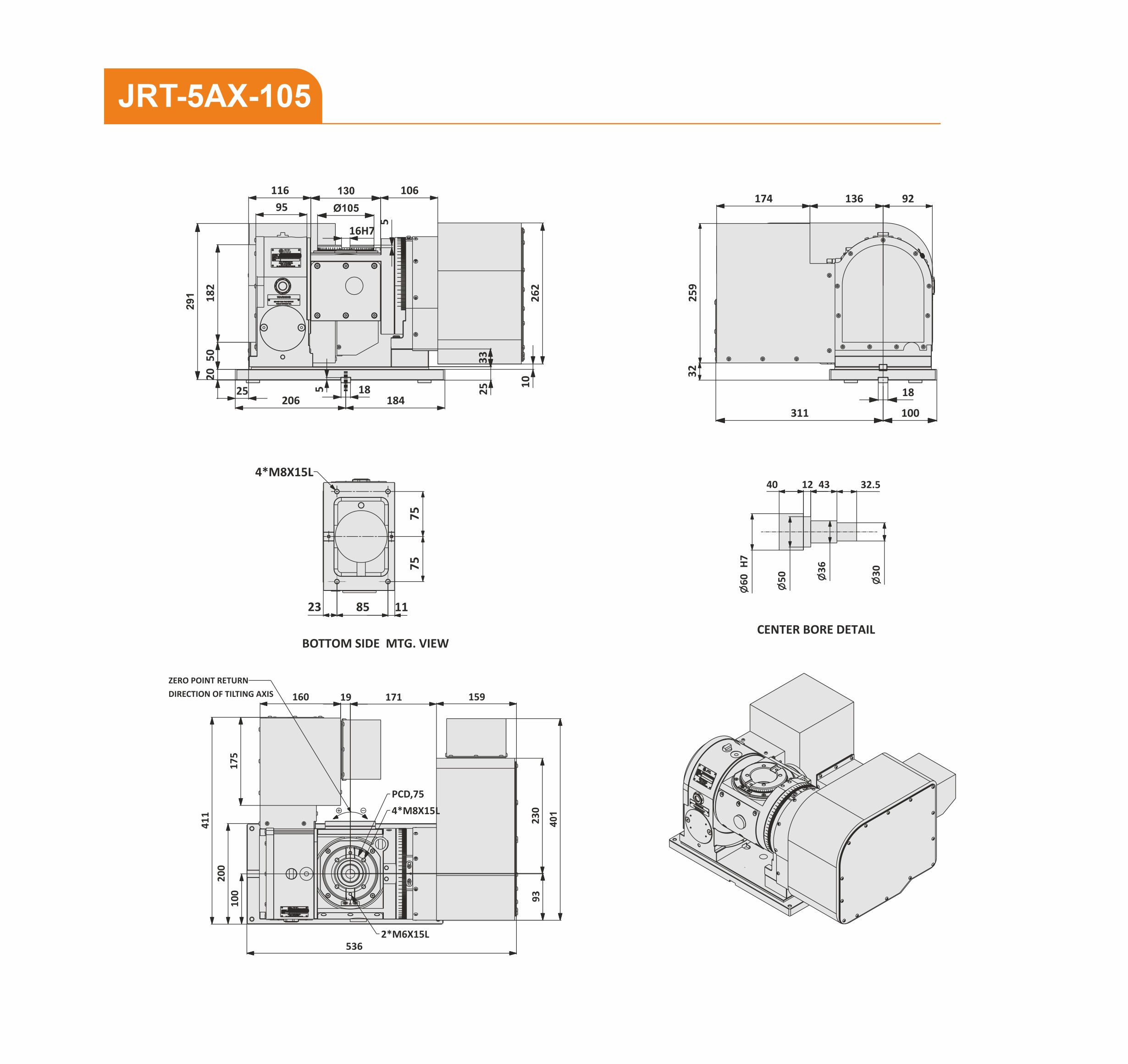

JRT-5AX-105 Rotary Table

Compact Powerful Precision Driven

The JRT-5AX-105 is a compact tilting CNC Rotary Table designed for space efficiency, enabling precise machining of intricate parts and complex geometries with high accuracy and rigidity.

  • Features

  • Compact Marvel – Designed for compact machines
  • Optimized Workspace – Creates more machining room despite its small footprint
  • Air-Hydraulic Clamping (Standard) – Ensures stable machining under heavy loads
  • Versatile Attachments – Supports jig plates, scroll chucks, and center sockets
  • Industry Ready – Ideal for electronics, automotive, and precision component manufacturing
Specification / Model Number JRT-5AX-105
Turn Table DiameterØ mm105
Spindle Hole Diameter (H7)Ø mm60
Number of Spindles (Pitch)1
Center Heightmm135
Table Height in Horizontal Positionmm190
Width of T-Slot (H7)mm16
Axis Rotary / Tilting (0 ~105)
Clamping System Pneumatic
Clamping TorqueN.m 200 / 605
Table Inertia at Motor Shaftkg.m²×10-3 0.09 / 0.12
Servo Motorr/min α iF1.2000
Min Incrementdeg 0.001
Rotation Speedr/min 44.4 / 22.2
Total Reduction Ratio 1:45 / 1:90
Indexing Accuracysec ±30 / 60
Net Weightkg 86.8
MAX
Work Load
on the Table		 0 to 30 kg 40
30 to 90 kg 20
Tilting Angle = 0 N 5295
Tilting Angle = 0 N L = 45mm    F = 3840N
Tilting Angle = 90 N L1 = 0mm    F1 = 2959N
Tilting Angle = 90 N 96
Max Work Inertia kg.m² 0.03
Driving Torque N.m 18
