The JHE-40 Hydraulic Equalizer is a heavy-duty, long-stroke clamping unit designed to deliver uniform and stable clamping force in large hydraulic fixture systems. It ensures balanced pressure distribution while accommodating greater clamping heights, making it suitable for demanding machining applications.

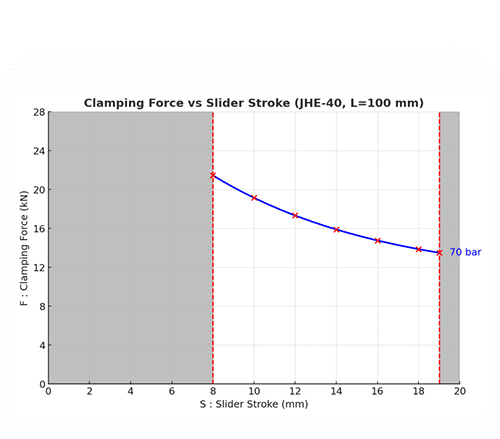

With a rigid body, precision-machined internal components, and stable pressure–force characteristics, the JHE-40 provides high reliability, accurate positioning, and long service life under continuous industrial operation. Its robust construction makes it ideal for large CNC fixtures, rotary tables, and automation systems.
| Specification | Value | Specification | Value |
|---|---|---|---|
| Slide Stroke (One Side) | 20 ±1 mm | Air Blow Operating Pressure | 0.4 MPa |
| Max. Clamping Height | 100 mm | Locating Repeatability (X-axis direction) | ±0.03 mm |
| Max. Operating Pressure | 7 MPa (70 bar) | Operating Temperature | 0~70°C |
| Min. Operating Pressure | 1.5 MPa (15 bar) | Usable Fluid | General Hydraulic Oil ISO-VG32 |
| Withstanding Pressure | 10.5 MPa (105 bar) | Weight | 21.2 kg |

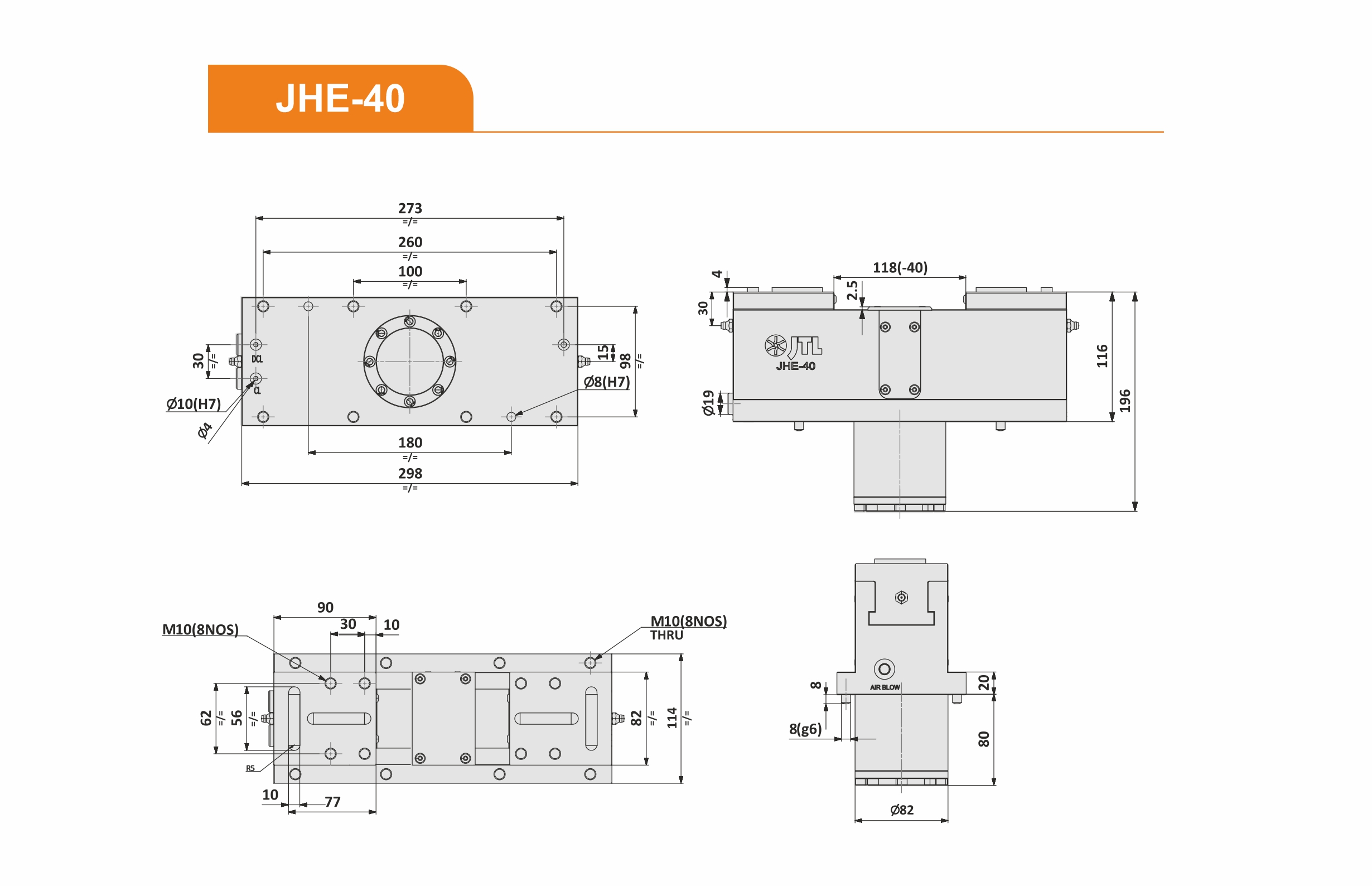

NOTE * ALL DIMENSION ARE SHOWN IN DECLAMP CONDITION
