We are Commited to Deliver Products built on the foundation of accuracy, durability, and innovation

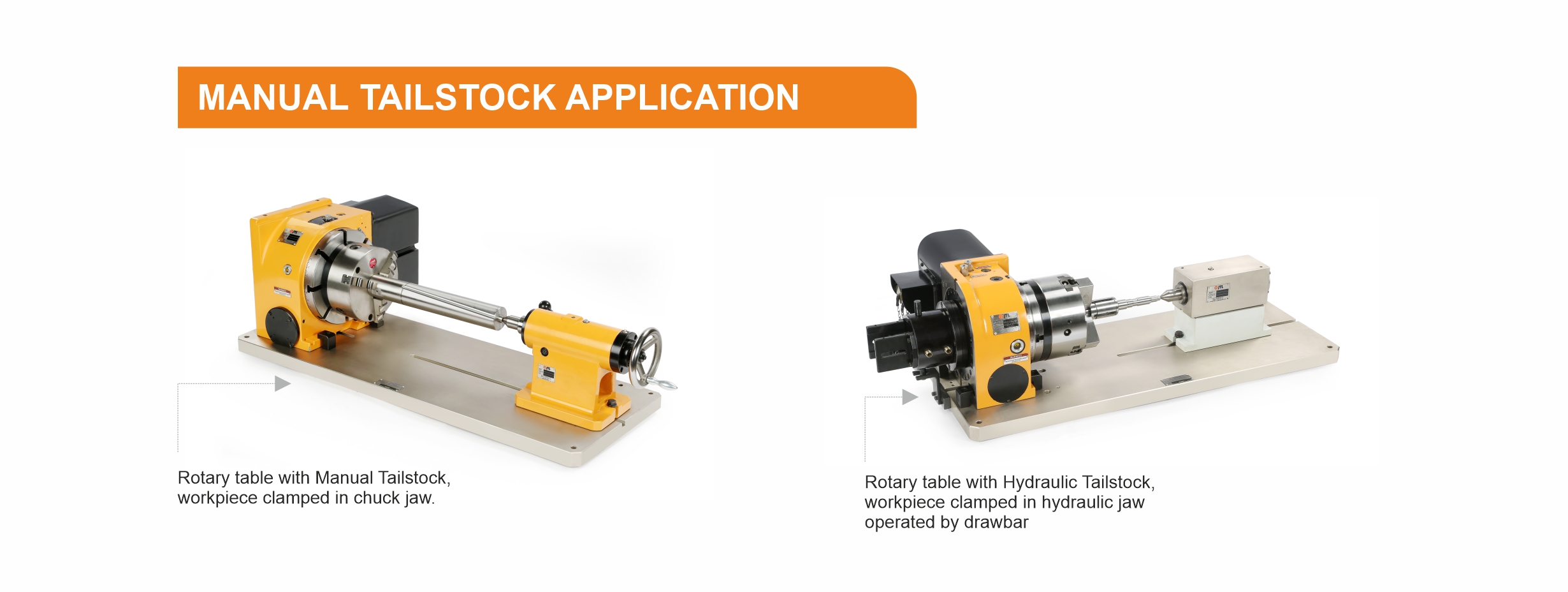

Tailstocks are used alongside a CNC rotary table to provide stable support for long workpieces during machining. They allow the machine to accurately and safely handle shaft-type components. By securing the workpiece with a dead centre or live centre, the tailstock ensures precise alignment, stability, and smooth cutting operations

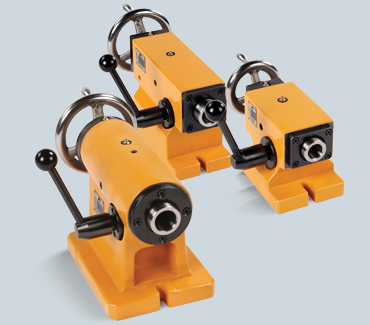

Our JMT Series Manual Tailstocks are engineered for reliability and precision. With the integration of the Elesa gantry hand wheel and adjustable lever, our manual tailstock is further enhanced to provide unparalleled rigidity and ease of use, making setup and adjustments smooth and efficient.

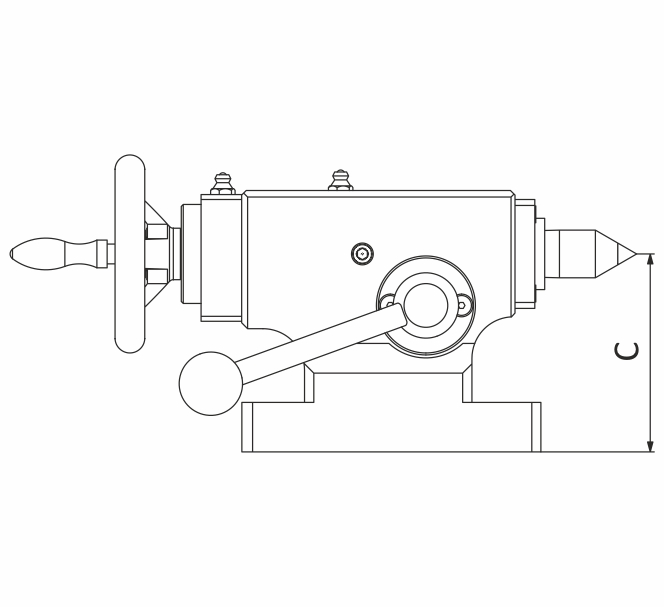

| Model | Center Height (mm) ( C ) | Center Taper | Stroke (mm) | Weight (Kg) |
|---|---|---|---|---|
| JMT 100 | 100 | MT3 | 40 | 12.7 |
| JMT 135 | 135 | MT4 | 50 | 27 |
| JMT 140 | 140 | MT4 | 50 | 28 |
| JMT 160 | 160 | MT4 | 50 | 31.5 |
| JMT 170 | 170 | MT4 | 50 | 32.5 |
| Model | Center Height (mm) ( C ) |
|---|---|

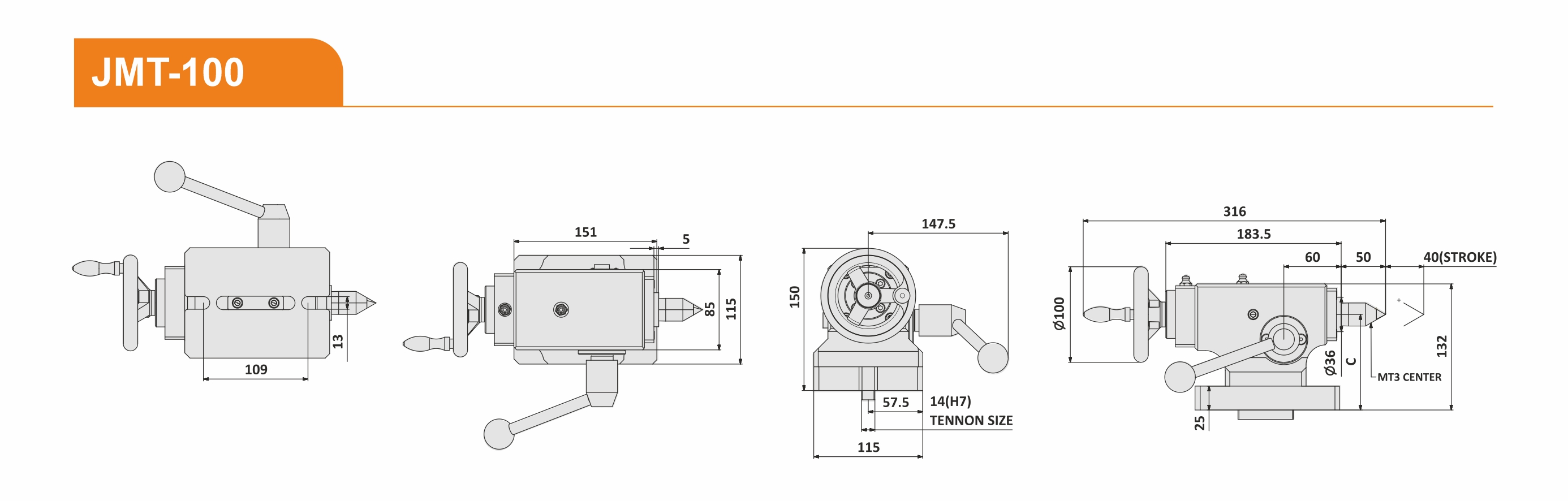

| JMT 100 | 100 |
| Model | Center Height (mm) ( C ) |
|---|---|

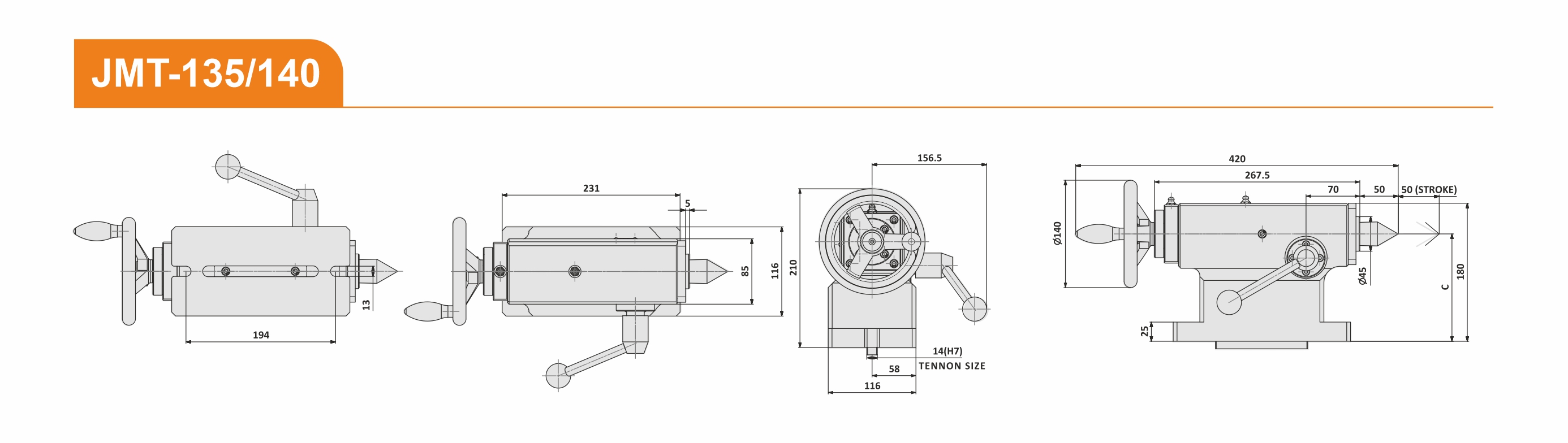

| JMT 135 | 135 |
| JMT 140 | 140 |
| Model | Center Height (mm) ( C ) |
|---|---|

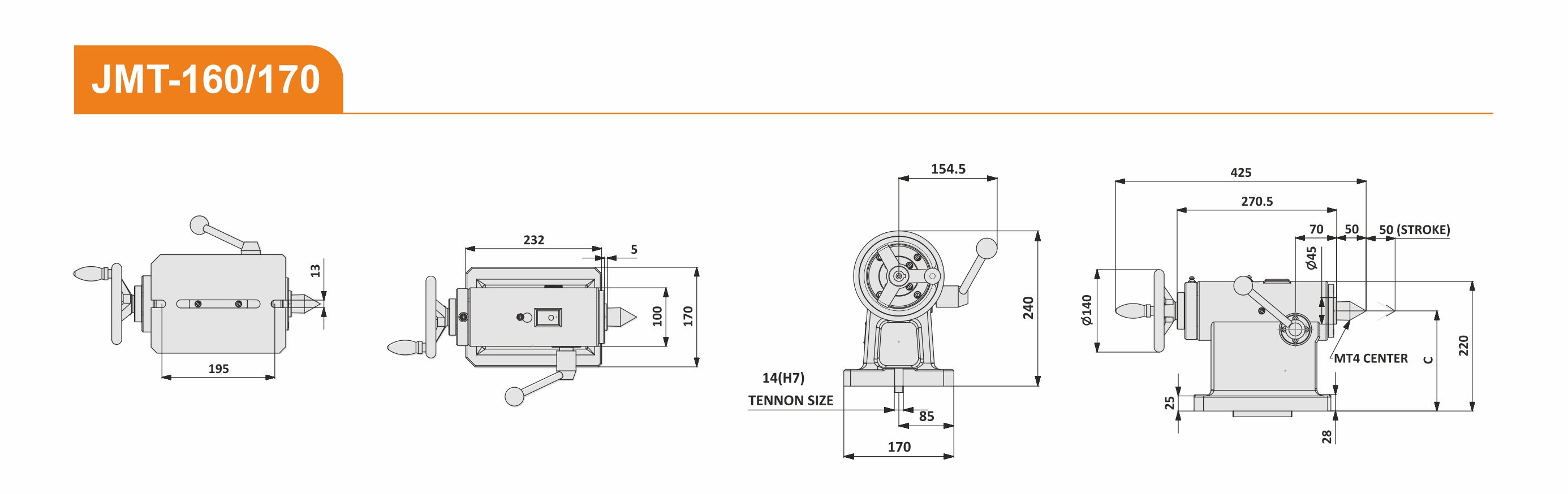

| JMT 160 | 160 |
| JMT 170 | 170 |
