JHD → Hydraulic Drawbar
JPD → Pneumatic Drawbar
We are Commited to Deliver Products built on the foundation of accuracy, durability, and innovation

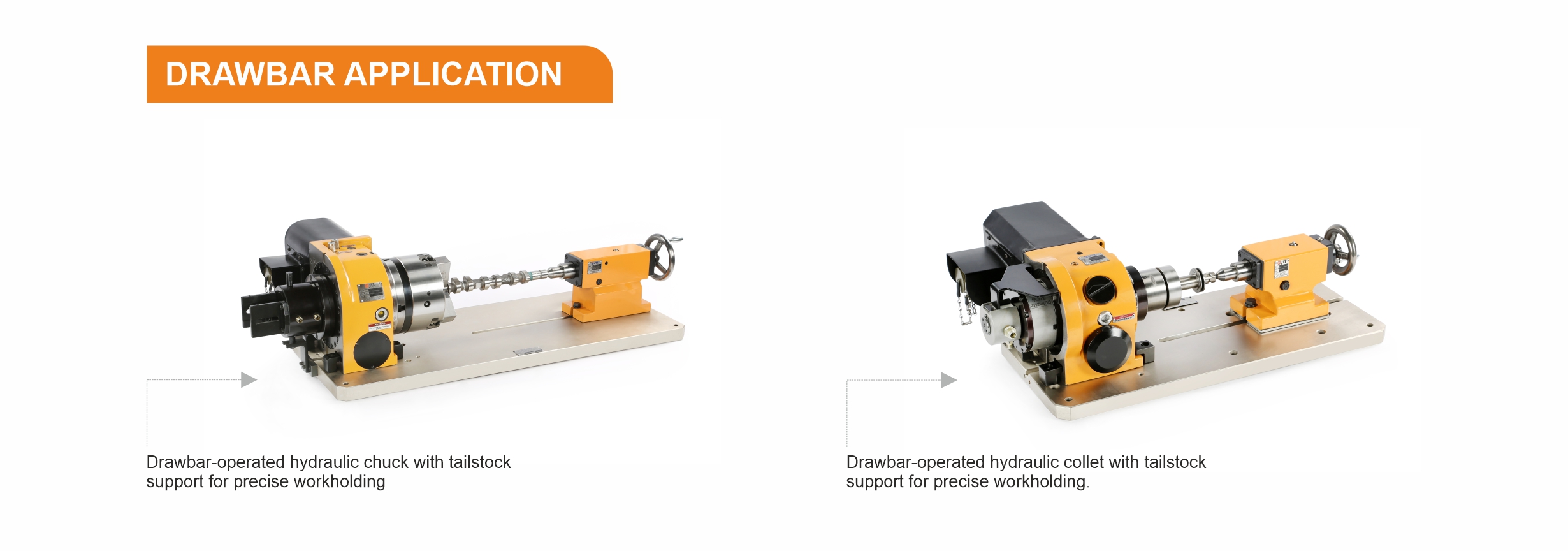

Drawbars are precision clamping devices designed for secure workpiece holding on rotary tables. They connect directly with collets, chucks, or fixtures to provide strong and reliable clamping, ensuring high machining accuracy, rigidity, and operational safety. The JHD Series Hydraulic Drawbars and JPD Series Pneumatic Drawbars are engineered for smooth clamping and unclamping, quick changeovers, and long service life under continuous industrial operation.
Their compact and robust construction allows easy integration with JTL rotary tables and other compatible systems. Available for multiple rotary table sizes, JHD / JPD drawbars deliver high clamping force with precise control, helping to reduce setup time and improve productivity in CNC machining environments.

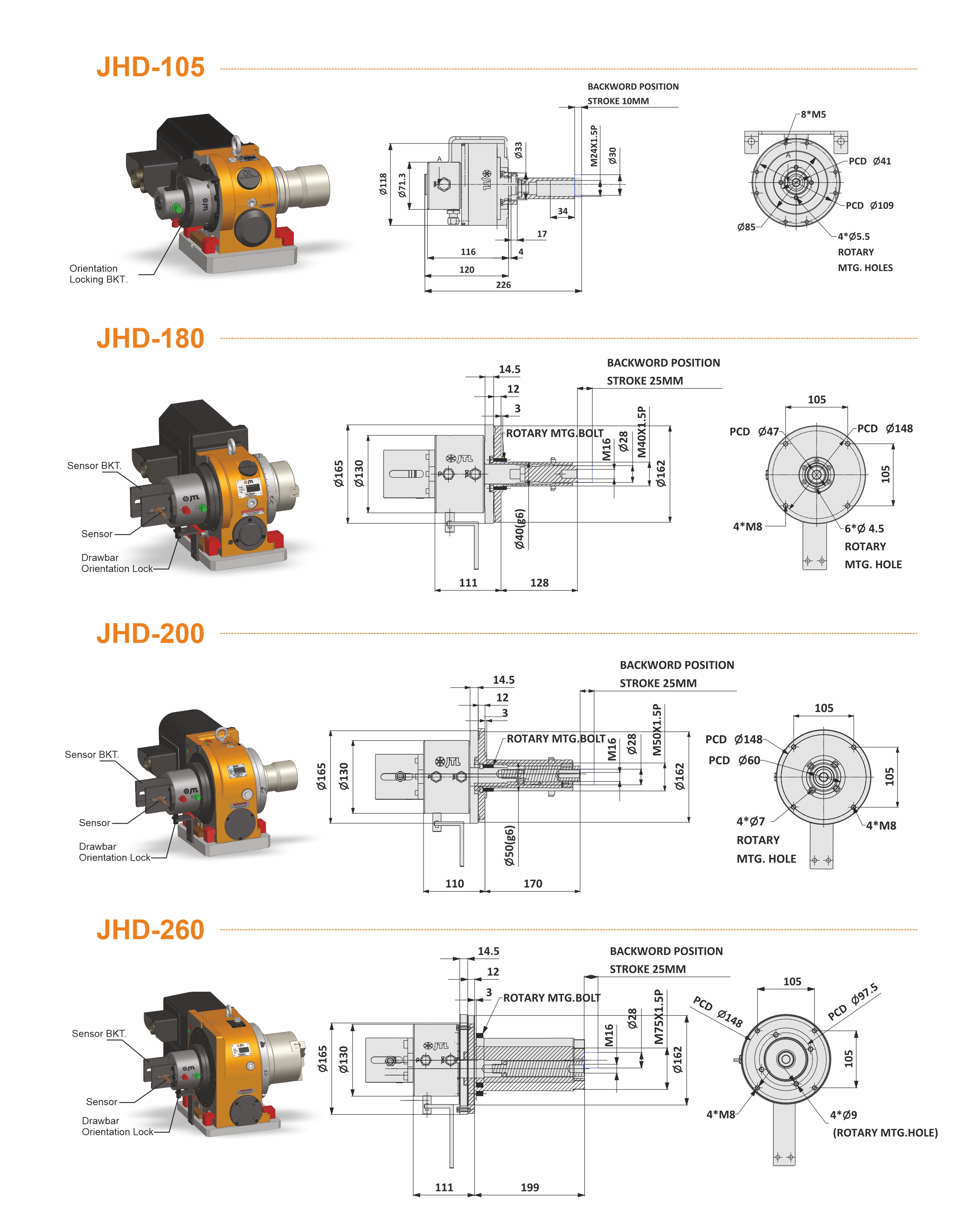

| Model | Stroke (mm) | Suitable Rotary Table | Type | Approx Weight (Kg) |
|---|---|---|---|---|
| JPD-105 | 10 | JRT 105 | Pneumatic | 5 |
| JHD-105 | 10 | JRT 105 | Hydraulic | 5 |
| JHD 180 | 25 | JRT 180 | Hydraulic | 14 |
| JHD 200 | 25 | JRT 200 | Hydraulic | 16 |
| JHD 260 | 25 | JRT 260 | Hydraulic | 20 |
