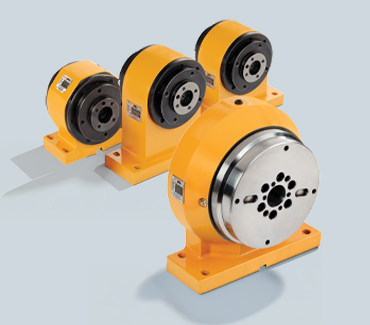

Face Plate Tailstock

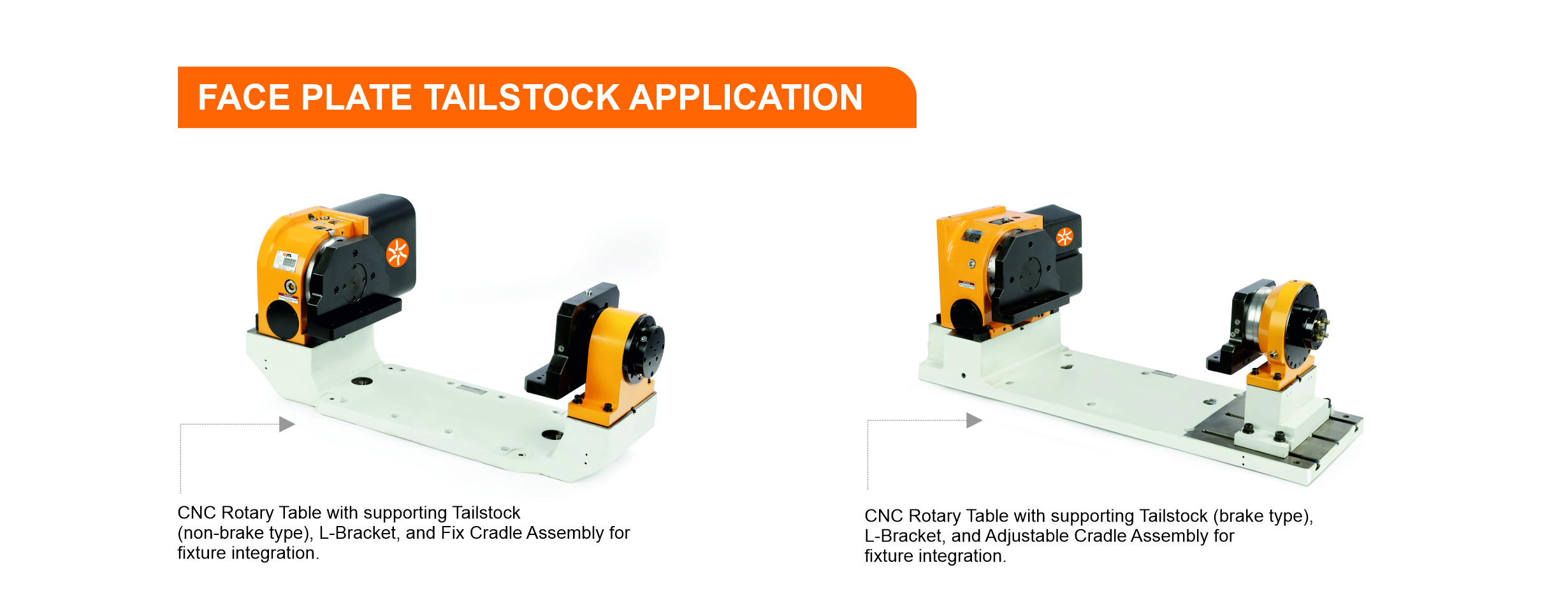

The JFT Series Face Plate Tailstocks are designed to provide rigid and reliable support for long components during machining. These tailstocks are specially engineered for use with CNC rotary tables, ensuring precision and stability.

We offer both brake and without brake tailstocks to suit your application requirements.

  • Use without brake models for standard supporting applications.
  • Use with brake (B) model when additional holding stability is required, especially during heavy machining, interrupted cutting, or when higher cutting forces are involved.

FACE PLATE TAILSTOCK
JFT 1 – 140 2 – B 3 – 6P 4

1. Product Standard

JFT → Faceplate Tailstock

2. Center Height)

100 → 100 mm
140 → 140 mm
160 → 160 mm

3. Break Option

B → With Break
(no letter) → Without Break

4. Number of Ports

6P → 6 Ports
(no letter) → 4 Ports

Key Highlights of JFT Series

  • Rigid and compact body design for stable clamping
  • Available in with brake and without brake versions
  • Brake model (JFT-140-B) provides enhanced holding strength under heavy load
  • Multiple center height options for different applications
  • 4-port standard configuration, 6-port available in brake model
  • Easy integration with CNC rotary tables

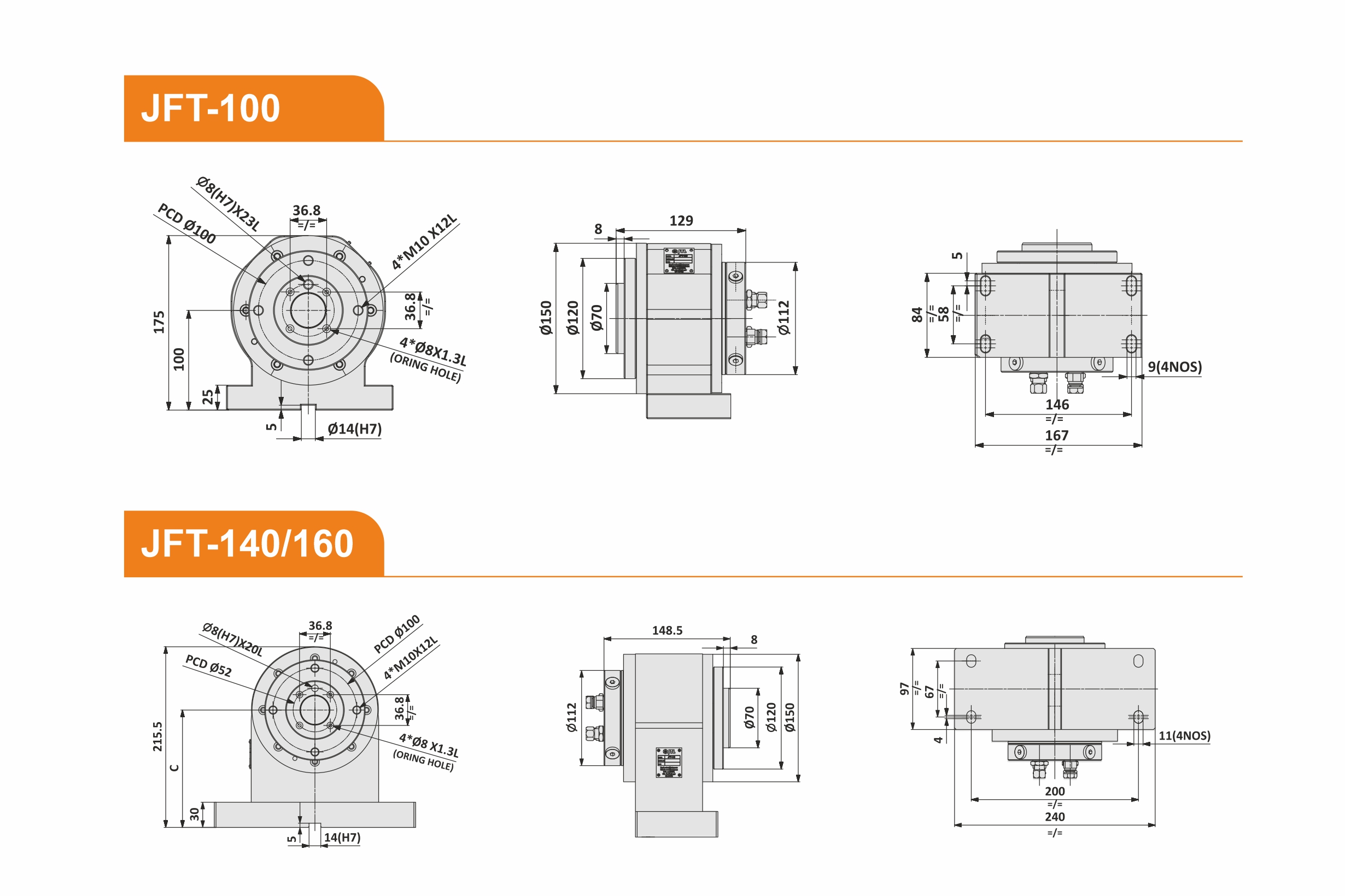

Models & Specifications

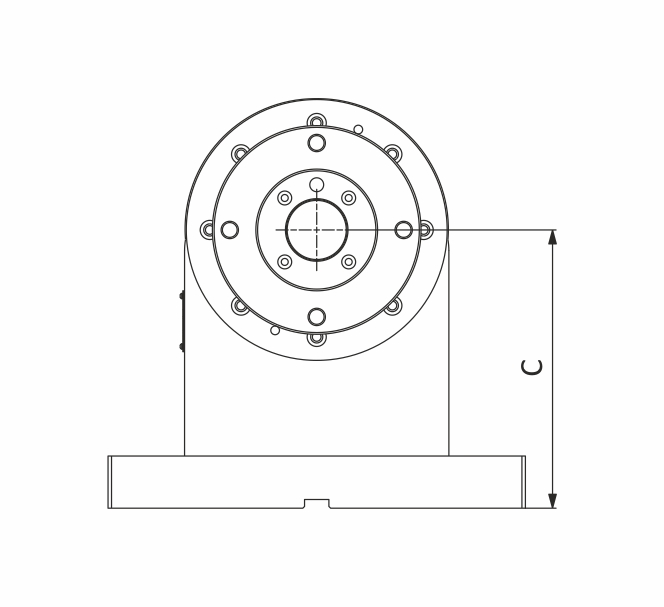

Model Center Height (mm) ( C ) Port Options Weight (Kg)
JFT 100 100 4 Port 16
JFT 140 140 4 Port 25
JFT 160 160 4 Port 26.5

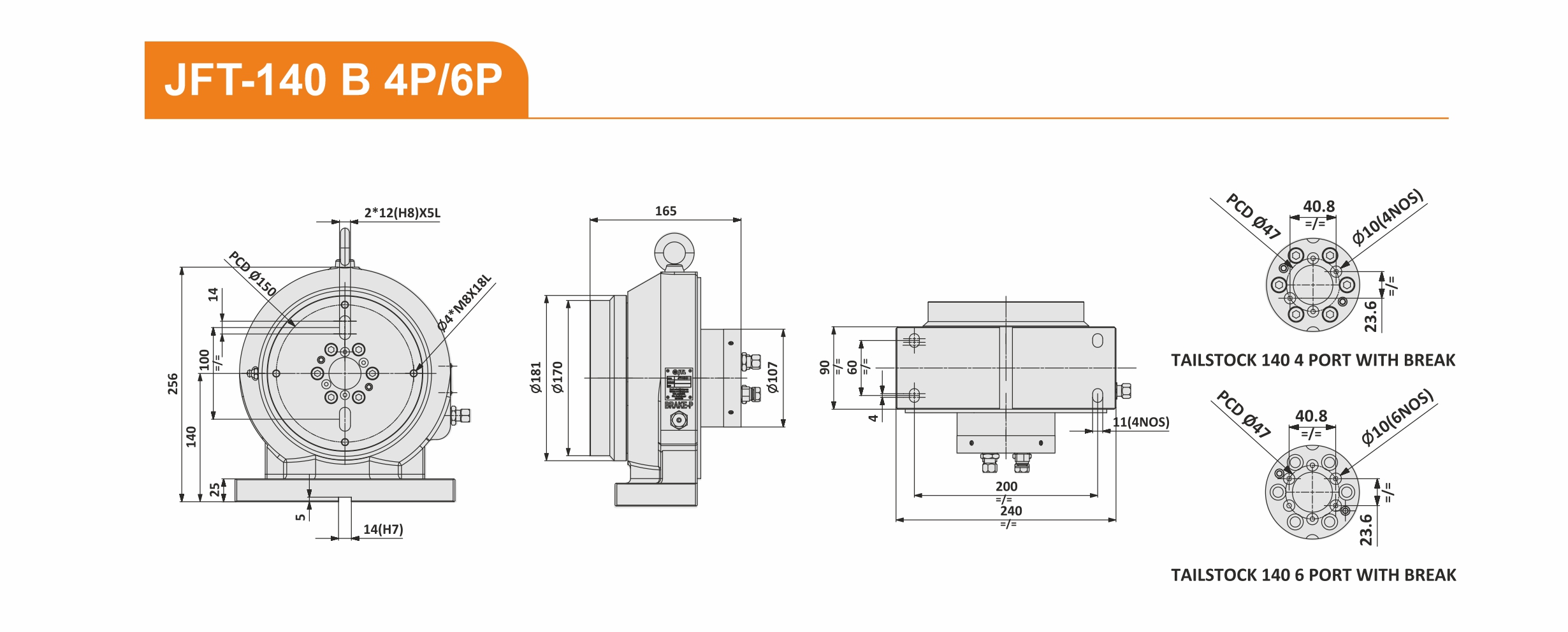

JFT 140 B 140 4 Port 34
JFT 140 B - 6P 140 6 Port 34
Model Center Height (mm) ( C )
JFT 140 140
JFT 160 160
