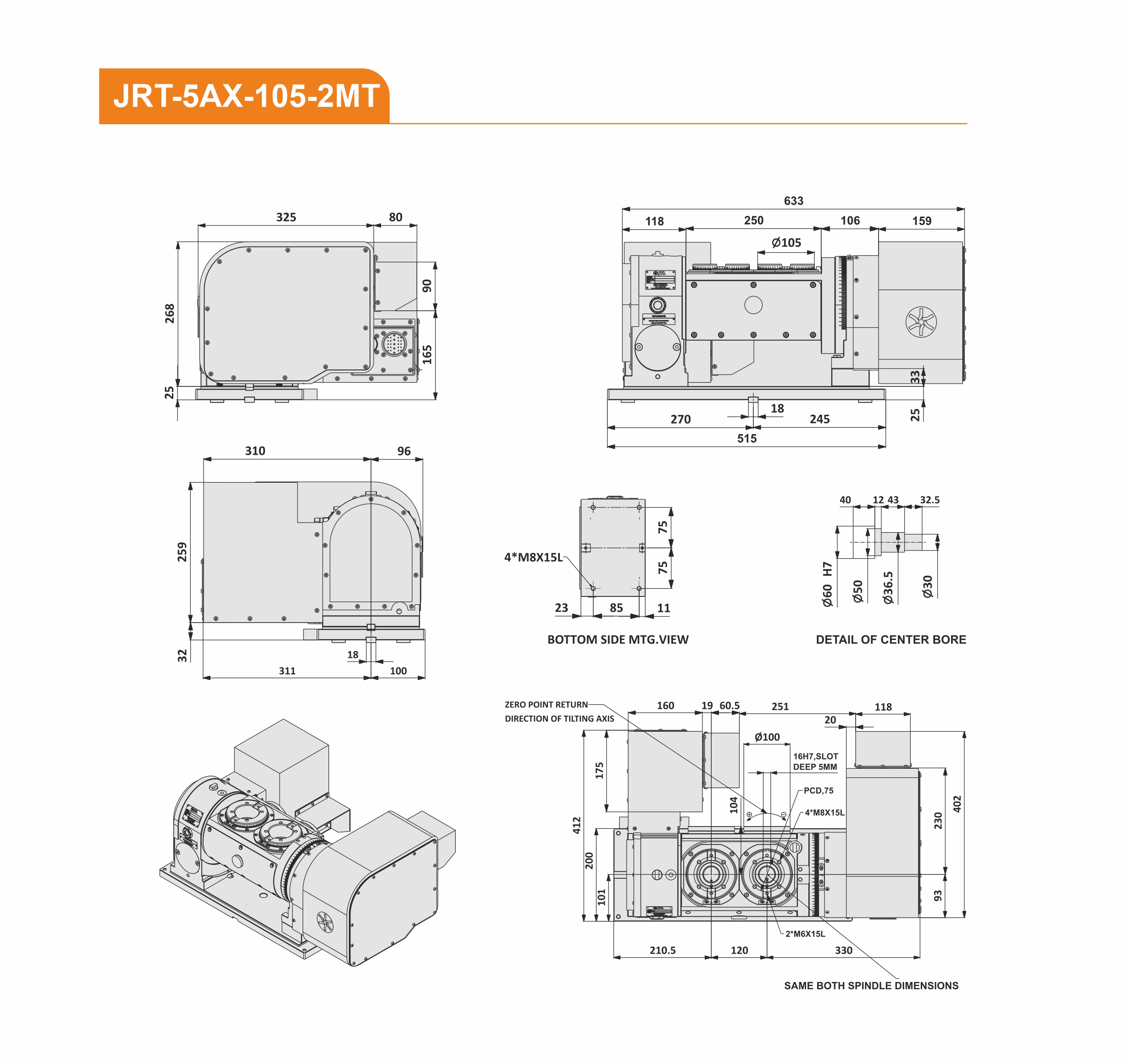

5th Axis Rotary Table – JRT-5AX-105-2MT

Multi-Spindle High Productivity Precision Engineering

The JRT-5AX-105-2MT is a twin-spindle tilting CNC Rotary Table built for high-volume production, minimizing setup times while delivering precise machining of complex geometries and angular operations across industries.

  • Features

  • Mass Production Ready – High-volume output of intricate parts with angular features
  • Twin Spindle Advantage – Minimizes setup time while doubling machining potential
  • High Precision – Rigid design and accurate clamping ensure consistency
  • Flexible Workholding – Compatible with jig plates, chucks, and sockets
  • Durable Design – Easy maintenance with long-lasting performance
  • Efficiency Focused – Optimized for setups where preparation time exceeds machining time
Specification/Model Number JRT-5AX-105-2MT
Turn Table Diameter Φ mm 105
Spindle Hole Diameter (H7) Φ mm 60
Number of Spindles (Pitch) 2 Spindles (120)
Center Height mm 175
Table Height in Horizontal Position mm 250
Width of T-Slot (H7) mm 16
Axis Rotary Tilting (0~105)
Clamping System Pneumatic Pneumatic
Clamping Torque N.m 144 144
Table Inertia at Motor Shaft kg.m²×10⁻³ 0.13 0.13
Servo Motor r/min α iF2.3000 α iF2.2000
Min Increment deg 0.001 0.001
Rotation Speed r/min 33.3 11.1
Total Reduction Ratio 1:90 1:180
Indexing Accuracy Sec ±30 60
Net Weight kg 106
MAX
Work
Load
on
the
Table		 0 to 30 kg 15
30 to 90 kg 10
Tilting Angle = 0 N 3935
Tilting Angle = 0 N L=60mm  F=780N
Tilting Angle = 90 N L1=0mm  F1=650N
Tilting Angle = 90 N 50
Max Work Inertia kg.m² 0.014
Driving Torque N.m 36
